Bitcoin ASIC: How It Works and Which Miner to Choose

A Bitcoin ASIC (Application-Specific Integrated Circuit) is a dedicated hardware device built exclusively to compute SHA-256 hash functions – the cryptographic operation required to mine Bitcoin. Unlike a CPU or GPU, it performs no other task. It solves one problem, at extraordinary speed and efficiency, continuously.

That single-purpose design is what makes an ASIC essential for Bitcoin mining today. Understanding how it works is the foundation for every hardware and profitability decision that follows.

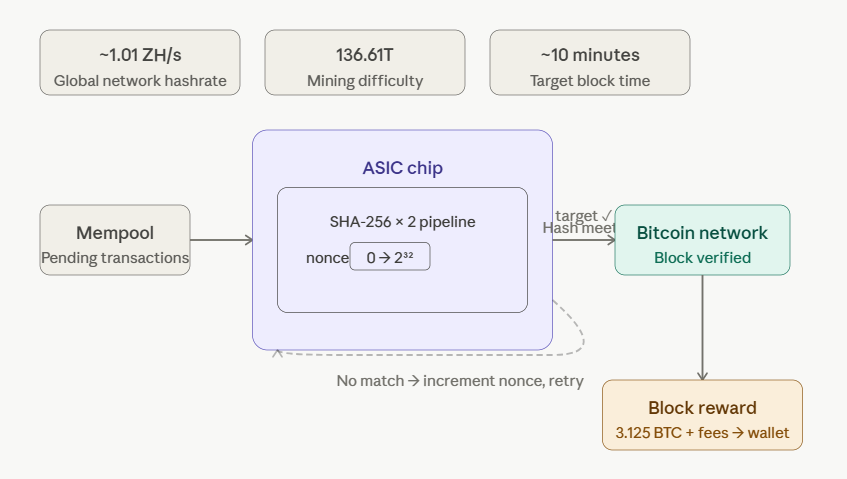

What Is Bitcoin ASIC and How Does It Work?

Unlike a CPU or GPU, it cannot run software, browse the web, or handle any other task. It does one thing, extraordinarily fast and efficiently.

The mining process, step by step:

• Every ~10 minutes, Bitcoin miners compete to add the next block of transactions to the blockchain.
• To do so, they must find a special number, called a nonce, that, when combined with the block's data and hashed through SHA-256 twice, produces an output that meets the network's current difficulty target.
• The miner who finds it first earns the block reward, currently 3.125 BTC, plus all transaction fees in that block.

An ASIC chip replaces the flexible transistor architecture of a CPU or GPU with a fixed circuit layout optimized entirely for SHA-256 computation. Every transistor on the die contributes directly to hashing. There is no memory controller handling unrelated processes, no graphics pipeline, no floating-point unit.

Modern ASICs use thousands of specialized cores running in parallel. The Bitmain Antminer S21 XP, for instance, delivers 270 TH/s – meaning it performs 270 trillion hash attempts per second – while consuming 3,645 watts.

Bitcoin ASIC vs GPU vs CPU Mining: What's the Difference?

In short: CPUs are unsuitable, GPUs are obsolete for Bitcoin, and ASICs are the only viable option. The efficiency gap is measured in orders of magnitude.

A high-end gaming GPU might deliver around 0.1 TH/s on SHA-256 while drawing 300 watts. A current-generation Bitcoin ASIC delivers 200–500 TH/s from a similar power draw. The efficiency gap runs to roughly three orders of magnitude.

Running a GPU to mine Bitcoin in 2026 is economically incoherent. The electricity cost alone would far exceed any Bitcoin earned.

>> Read more: Can You Mine Bitcoin in 2026? Honest Answer & Guide

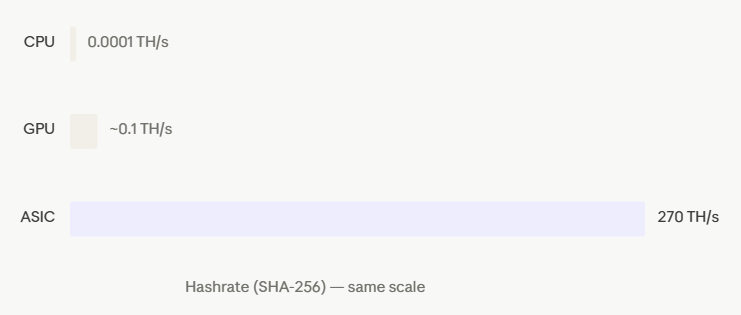

Why ASIC Dominates Bitcoin Mining

Unlike some alternative cryptocurrencies that use memory-hard algorithms to resist ASICs, Bitcoin's SHA-256 is a fixed, stateless hash function. It performs the same bitwise operations every time, with no need for large memory bandwidth or complex branching logic.

Once the first Bitcoin ASIC appeared in 2013, general-purpose hardware was effectively eliminated from competitive mining. A GPU or CPU operates so far above the bitcoin mining break-even point that no amount of cheap power or low hardware prices can close the gap against ASIC operators running at 13–16 J/TH.

Bitcoin automatically adjusts its mining difficulty every 2,016 blocks (approximately two weeks) to keep average block times near 10 minutes.

• As more hashrate joins the network, difficulty rises.
• As hashrate leaves, difficulty falls.

Machines that were profitable two years ago are hitting shutdown prices today. New-generation ASICs, operating at 13–16 J/TH, have made older hardware (30+ J/TH) economically obsolete in most markets.

The author's observation: Bitcoin was conceived, in part, as a system that anyone could participate in – a peer-to-peer network where ordinary computers would collectively secure the ledger. That vision lasted roughly four years. By 2013, the economics of SHA-256 had quietly transferred mining power to whoever could afford purpose-built silicon and negotiate an industrial electricity contract. Bitcoin's security today rests on a relatively small number of large-scale operators. The network remains decentralized at the protocol level, but the mining layer has consolidated in ways that were likely not anticipated.

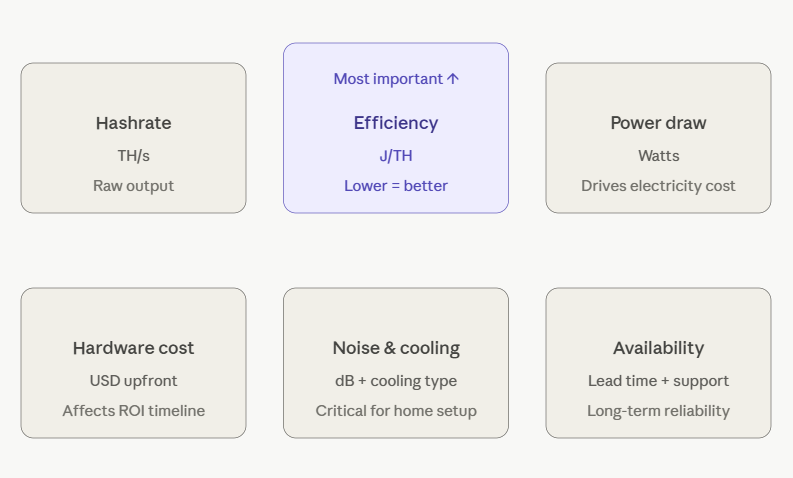

Key Factors to Consider Before Buying a Bitcoin ASIC

Before looking at specific models, understand what each metric actually means for your situation.

Initial hardware cost

Current-generation Bitcoin ASICs range from approximately $3,600 for the Antminer S21 Pro to $16,500+ for top-tier hydro-cooled models.

Hardware cost affects the ROI timeline directly. A more efficient machine costs more upfront but returns the premium through lower power bills over a 2–3 year horizon.

An Antminer S21 XP recovering $35–40/day gross at $0.07/kWh has a substantially different payback period than a used machine earning $10/day with higher electricity consumption.

Hash rate (TH/s)

Hashrate measures raw computational output – how many SHA-256 attempts the machine makes per second, expressed in terahashes per second. A higher hashrate means a larger share of total network hashrate, which translates directly to a proportionally higher probability of earning block rewards.

However, hashrate alone is meaningless without context. A machine with 270 TH/s that consumes 10,000 watts is less attractive than one delivering 234 TH/s at 3,500 watts, despite the lower headline number.

Power consumption (W)

Power draw determines your ongoing electricity cost, which typically accounts for 75–85% of monthly mining expenses as of May 2026.

At $0.07/kWh, a common rate for hosted industrial operations, a 3,500W miner costs roughly $176/month in electricity alone, running 24/7. At residential rates ($0.12–0.30/kWh in most markets), that same machine could easily operate at a loss.

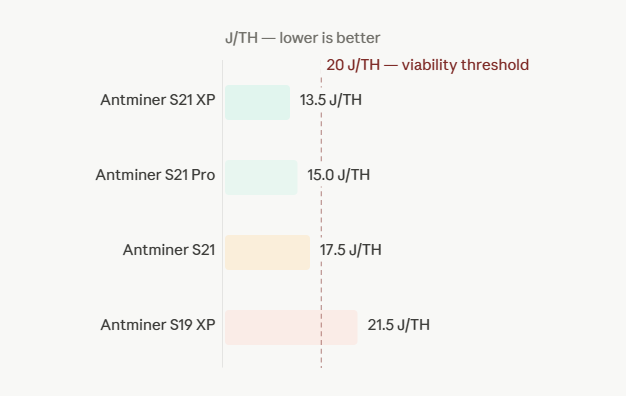

Energy efficiency (J/TH)

Joules per terahash (J/TH) expresses how much energy the machine consumes per unit of hashing work. This is the most important single metric when comparing miners.

Lower is better. The Antminer S21 XP at 13.5 J/TH produces the same Bitcoin reward per unit of electricity as a machine rated 27 J/TH produces per two units.

Over months of continuous operation, that efficiency gap compounds into a significant difference in profitability. This is precisely why Bitcoin energy consumption per coin mined varies so drastically between a well-optimized ASIC farm and an outdated one running the same workload.

In 2026, the threshold for economic viability in most markets is approximately 20 J/TH or better. Hardware above this threshold is increasingly difficult to operate profitably at commercial electricity rates.

Noise and cooling requirements

Full-size Bitcoin ASICs typically operate at 72–76 dB – roughly the volume of a vacuum cleaner, running continuously. This makes home installation in living spaces impractical without serious acoustic isolation.

Cooling options divide into three categories:

• Air-cooled: Standard fans. No special infrastructure. Noisiest option.
• Immersion-cooled: Submerged in dielectric fluid. Quieter, more efficient, requires specialized setup.
• Hydro-cooled: Liquid cooling plates. Highest performance, highest infrastructure cost.

Home miners should look specifically at quieter models like the Fluminer T3 (40–55 dB) or open-source units like the Bitaxe.

Availability and maintenance

ASIC miners ship directly from manufacturers (primarily Bitmain, MicroBT, and Canaan) or through authorized resellers. Lead times vary from weeks to months, depending on demand and production cycles.

For maintenance, consider:

• Warranty coverage: Most new units carry a 180-day to 1-year manufacturer's warranty
• Firmware update cadence: Machines that receive regular firmware updates maintain compatibility with mining pools and fix stability issues over time
• Repair infrastructure: Hash board failure is the most common issue; having access to competent repair services matters for long-term operation

Best Bitcoin ASIC Miners

The models below represent the best options across different use cases. Specs are sourced from manufacturer data and independent reviews.

Best overall

The S21 Pro delivers 234 TH/s at 15.0 J/TH, at a price point around $3,600 that puts it within reach of serious individual miners and small operations. It offers the best combination of efficiency, hashrate, reliability, and accessible pricing in the current market.

Operators with electricity under $0.07/kWh can expect positive daily returns under current network conditions.

Best for beginners

The base S21 offers a lower entry price (~$2,800) with respectable efficiency (17.5 J/TH). It is less efficient than the S21 Pro but still sits above the 20 J/TH viability threshold. For a first-time miner joining an established hosting facility, the S21 provides a manageable starting point without the capital outlay of top-tier models.

Best for energy efficiency

At 13.5 J/TH, the S21 XP is the most efficient air-cooled Bitcoin miner commercially available in 2026. It is the right choice for miners who have secured sub-$0.07/kWh electricity and want to maximize margin per unit of power.

The higher upfront cost (~$4,500) is recovered through lower electricity bills over the machine's operational lifespan.

Best for large-scale mining

For industrial deployments with hydro-cooling infrastructure, the U3S23H delivers 1,160 TH/s at ~9.5 J/TH — the most powerful hydro-cooled Bitcoin miner currently on the market.

This is not a machine for individual miners. It requires purpose-built cooling systems and draws over 11,000 watts. In the right environment, it offers unmatched per-unit performance.

Best budget option

The Bitaxe Gamma is an open-source, single-chip ASIC designed for home mining without industrial infrastructure. At roughly $80, it consumes only ~15 watts and operates almost silently. Hashrate is minimal (~1.2 TH/s), making it unprofitable for revenue-seeking miners.

Its value is educational and ideological: it lets individuals participate in Bitcoin's security model without committing to industrial hardware.

Is Bitcoin ASIC Mining Profitable?

As of May 2026:

• Bitcoin network hashrate: ~1.01 ZH/s
• Mining difficulty: ~136.61 trillion
• Block reward: 3.125 BTC + transaction fees (~10–15% of total miner revenue under normal conditions). For a deeper breakdown of how these two revenue streams compare and where the balance is shifting, see Bitcoin Block Rewards vs Transaction Fees.
• Industrial electricity rate sweet spot: $0.05–$0.08/kWh
• Estimated production cost per BTC: ~$77,000 average, with full all-in costs exceeding $100,000 for some operators

At $0.07/kWh, an Antminer S21 Pro can generate approximately $35–40/day gross before difficulty fluctuations. Electricity costs alone for that machine run roughly $176/month, leaving a net margin that is real but not wide.

Electricity cost is the single most important variable. Efficiency matters, but a miner with expensive power will always lose to a less efficient miner with cheap power.

The breakeven electricity rate for current-generation S21-class hardware (13.5–17.5 J/TH) sits around $0.10/kWh at current Bitcoin prices.

• Miners above this threshold face losses.
• Miners below it, particularly those accessing industrial rates of $0.05–$0.06/kWh through hydro, solar, or negotiated contracts, operate at meaningful margins.

Home mining on standard residential electricity ($0.12–0.30/kWh in most markets) is not economically viable with full-size ASICs in 2026. The electricity cost exceeds revenue at these rates with current difficulty levels.
