ARK Protocol: Bitcoin's Layer 2 Beyond Lightning

Lightning Network works well in theory, but onboarding friction, including channel management, inbound liquidity requirements, and always-online constraints, keeps most users on custodial wallets instead of self-custodial ones. ARK eliminates those friction points entirely while keeping users in full control of their bitcoin.

The result is a fundamentally different scaling model that's worth researching on its own terms.

What Is ARK Protocol on Bitcoin?

Originally published on the Bitcoin developer mailing list under the placeholder name TBDXXX, Ark was created by developer Burak – an accidental invention that emerged while he was working on Lightning wallet improvements. The protocol was publicly introduced at the Bitcoin 2023 conference in Miami and has advanced significantly since then.

Burak named it "Ark" as a reference to Noah's Ark, which was a lifeboat offering refuge from custodial intermediaries and blockchain surveillance.

The goal is simple: fast, cheap, private Bitcoin payments without the setup complexity of the Lightning Network.

How Does Ark Protocol Work?

Here's a breakdown of the five core mechanics:

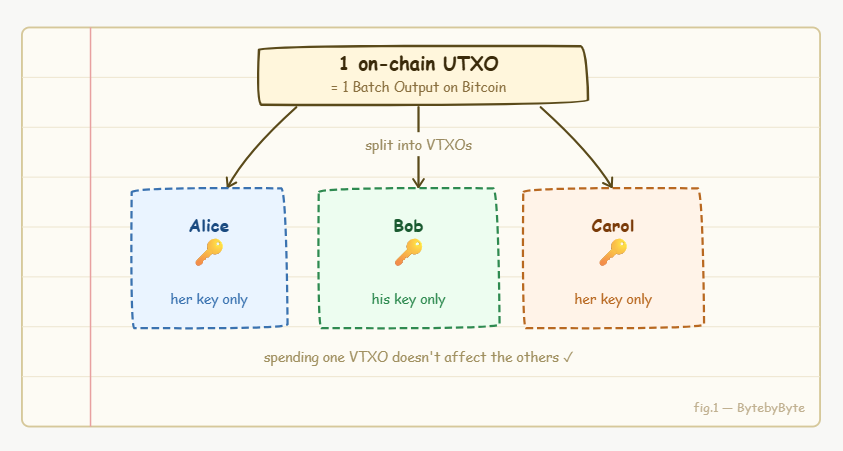

Virtual UTXOs (VTXOs): The Core Unit

In standard Bitcoin, each transaction output (UTXO) belongs to one owner. Ark introduces Virtual Transaction Outputs (VTXOs) – off-chain representations of Bitcoin ownership that mirror the familiar UTXO model but exist within a shared on-chain commitment called a Batch Output.

A Batch Output partitions a single on-chain UTXO into multiple VTXOs. Each VTXO corresponds to one user and can be independently spent or claimed without affecting others in the same batch. Users store their associated branch and leaf transactions off-chain, collectively forming a pre-signed transaction tree.

Think of it like a shared safety deposit box: many people have separate compartments inside the same vault, but each person holds the only key to their own compartment and can extract their contents at any time without involving the others.

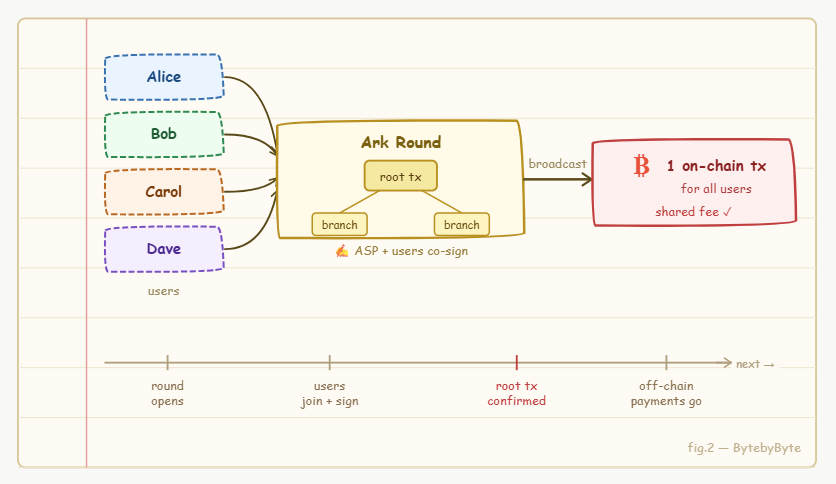

Ark Rounds: How Transactions Are Batched

Ark transactions are organized into rounds, periodic events coordinated by the Ark server (or operator).

In each round, the Ark operator and participating users collaboratively construct and sign a transaction tree, then broadcast the root transaction on-chain. Once that root transaction confirms on Bitcoin, every user in the round has verifiable, cryptographic assurance that they can unilaterally retrieve their bitcoin if needed.

After a round confirms, users can transfer VTXOs to one another off-chain, directly between rounds, without any additional on-chain transactions.

• Payments between Ark users happen at any time between rounds
• The receiver gets a new VTXO that extends directly from the sender's leaf in the existing tree

VTXOs carry an expiry timestamp set at creation. Before expiry, users (or their wallets) must either spend the VTXO or participate in a new round to refresh it. If no action is taken before expiry, the Ark operator gains the unilateral right to reclaim the funds. This is the mechanism that allows operators to recycle liquidity efficiently.

Ark Service Providers (ASPs)

The central coordinating party in Ark is the Ark Service Provider (ASP). ASPs are always-online intermediaries that:

• Create and manage Batch Outputs through on-chain Bitcoin transactions
• Coordinate round construction and co-sign off-chain transactions
• Provide liquidity for users who need to board Ark or make payments
• Operate a Lightning gateway for interoperability with the broader Lightning Network

Critically, ASPs are non-custodial by design. The n-of-n multisignature arrangement in Batch Outputs means the ASP alone cannot move user funds. An ASP can disrupt liveness (by going offline), but it cannot steal bitcoin. Users always retain the ability to exit unilaterally.

New users don't even need to go through an onboarding process with an ASP to start receiving VTXOs. They can begin receiving immediately after setting up a wallet, the moment someone sends them a VTXO.

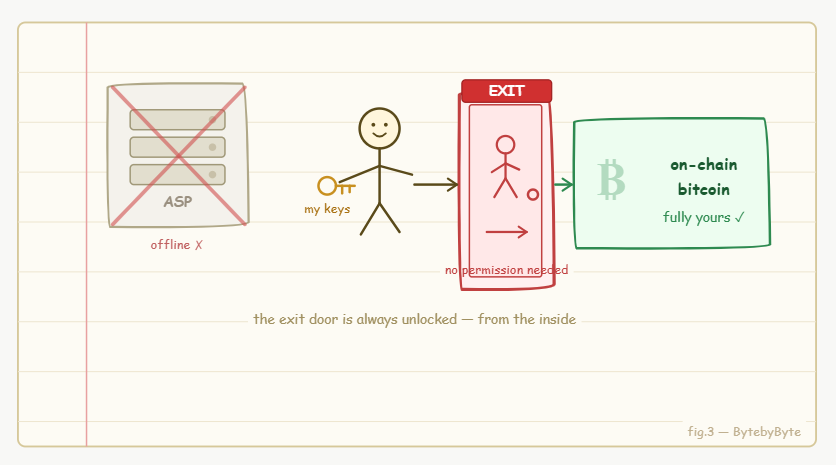

Unilateral Exit: User Always in Control

The most important safety guarantee in Ark is the unilateral exit. At any time, particularly if the Ark server becomes unresponsive, a user can broadcast their pre-signed transactions in sequence: from the root of the tree, down through their branch, to their leaf.

Each broadcast progressively narrows the shared UTXO until the user's bitcoin is released to an address they alone control.

Because users share branches in the transaction tree, each user who exits first actually reduces the number of transactions required for subsequent users to complete their own exits, creating a cooperative incentive even in an emergency scenario.

Under normal conditions, users exit cooperatively. They request an off-board from the Ark server, which atomically forfeits their VTXO in exchange for a direct on-chain output. The unilateral exit path is reserved for true emergencies.

Privacy by Design: Built-in CoinJoin

Ark integrates privacy at the protocol level rather than as an optional add-on.

Every Ark transaction goes through a high-speed CoinJoin process. The ASP acts as coordinator, similar to how Samourai's Whirlpool or Wasabi's WabiSabi CoinJoins work, mixing VTXO spends across multiple users in each round. Users can exercise coin control, selecting which VTXO they wish to spend before it enters the CoinJoin process.

The result is that the on-chain footprint of Ark activity is significantly harder to trace than standard Lightning payments. There is no direct on-chain link between sender and receiver in a normal Ark payment.

Ark Protocol vs Lightning Network: Key Differences

Ark and Lightning are both Bitcoin Layer 2 protocols, but they use fundamentally different architectures and make different trade-offs. Those differences are key to seeing why Ark exists alongside Lightning rather than trying to be a copy of it.

• Lightning routes payments through bilateral channels between pairs of users.
• Ark uses a central server to coordinate payments among potentially hundreds of thousands of users sharing a single on-chain UTXO without that server ever holding custody.

Lightning's key limitation is its onboarding complexity. To receive payments on Lightning, users must open at least one channel (an on-chain transaction) and acquire inbound liquidity. Their channel counterparty must commit bitcoin to the channel for them to receive. For everyday users, this is a significant barrier. Ark eliminates both requirements entirely.

Who Is Building ARK Protocol?

ARK Protocol is an open specification, and two distinct teams have built production implementations, both of which reached the Bitcoin mainnet in 2025.

1. Ark Labs – Arkade

Ark Labs was formed in June 2024 to build on and commercialize the Ark protocol. In October 2025, Ark Labs launched Arkade to public beta, described as Bitcoin's first scaling layer for programmable finance since Lightning Network's debut. Arkade is backed by investors including Draper Associates, Axiom, and Fulgur Ventures.

Alongside the mainnet launch, Ark Labs introduced Arkade Assets, a native asset framework supporting stablecoins and other tokens on top of Ark, with Tether USDT support in the pipeline. CEO Marco Argentieri stated: "The Bitcoin L2 landscape has been full of promises but light on shipping."

Arkade's launch partners include Breez, BTCPayServer, Boltz, BullBitcoin, Lendasat, and LayerZ Wallet.

2. Second – Bark

Second is a Bitcoin development lab that built Bark, their implementation of the Ark protocol. In September 2024, Second demonstrated the first Ark transactions on Bitcoin mainnet, and in June 2025, they formally launched Bark on mainnet.

Bark ships a full developer toolkit, the Bark SDK, written in Rust with language bindings for Kotlin, Swift, React Native, Flutter, Go, Python, and WebAssembly. Applications live at mainnet launch include Noah (mobile Ark wallet), Arke (iOS wallet), Satsigner (UTXO management), and a BTCPay Server plugin for merchants.

Second CEO Steven Roose framed the launch as a UX gap solution: "We wanted to make it ridiculously easy for users to get started with self-custodial bitcoin, hold it, and spend it, without surprise fees, and without having to [manage channels]."

Limitations and Trade-offs of ARK Protocol

1. VTXO expiry and liveness requirement

VTXOs are not permanent. They carry an absolute timelock expiry, and users (or their wallets) must spend or refresh VTXOs before that deadline. If a VTXO expires without action, the Ark operator gains the unilateral right to reclaim those funds. This introduces a liveness requirement that doesn't exist on-chain: users can't simply hold their VTXOs indefinitely without periodic engagement.

2. Covenant dependency for full efficiency

Ark works on Bitcoin today without any consensus changes. However, the protocol would support significantly more users and achieve greater fee efficiency if Bitcoin added covenant features like OP_CHECKTEMPLATEVERIFY (CTV).

Without covenants, the current covenantless variant (clArk) requires all users inside a batch to collaboratively sign exit transactions – an interactive process that adds coordination overhead.

A covenant-based Ark would allow the operator to construct the transaction tree non-interactively, making the protocol far more scalable. A covenant-related soft fork could arrive as early as 2026, according to some Bitcoin developer estimates.

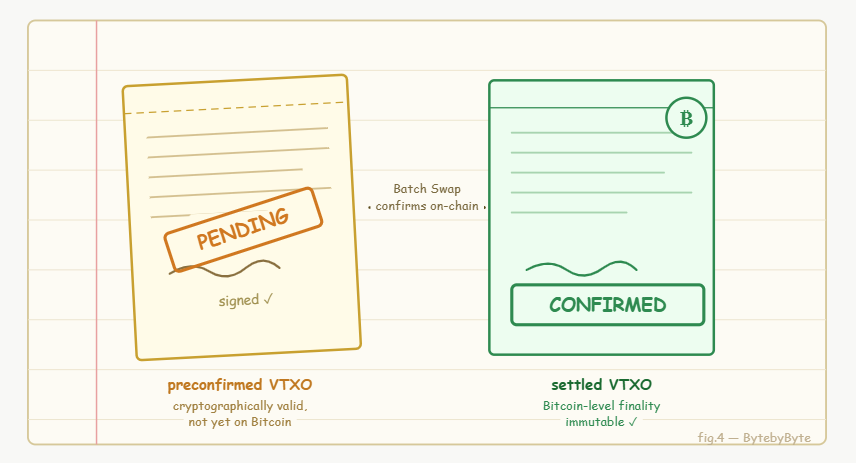

3. Pre-confirmation trust assumption

Payments between rounds exist in a "preconfirmation" state, cryptographically valid but not yet anchored to the Bitcoin blockchain. A malicious operator could attempt to double-sign conflicting transactions in this window.

Full Bitcoin-level finality is only achieved after a Batch Swap confirms on-chain. This is a known and documented trade-off in the Ark design, but it requires users to understand the distinction between preconfirmed and fully settled VTXOs.

4. Early-stage ecosystem maturity

Both mainnet implementations (Arkade and Bark) launched in 2025 and are still in beta. Wallet availability, developer tooling, and ASP diversity are growing but not yet comparable to Lightning's decade-long ecosystem. Ark is not a production-ready replacement for Lightning in high-volume payment contexts today.

Could Ark Complement Lightning Rather Than Replace It?

Ark is best understood as a new onramp to the Bitcoin payments ecosystem that lowers the barrier for users who find Lightning's channel management too complex, while still connecting to Lightning's liquidity network via ASP gateways.

• A user on Ark can pay a Lightning invoice without ever opening a channel.
• A merchant accepting Lightning gets paid, without knowing or caring whether the sender used Ark or a direct Lightning node.

Bitcoin Magazine described Ark and Spark (a similar protocol) as "the channel factories we've been waiting for" – subnetworks that are natively compatible with Lightning and achieve greater scale by reducing complexity, rather than competing with Lightning's established infrastructure.

The broader Bitcoin Layer 2 landscape in 2025 reflects this multi-protocol reality.

• Lightning remains the standard for merchant payments.
• Ark targets the self-custody onboarding gap.
• Other protocols like Liquid handle different use cases.
• No single Layer 2 dominates every scenario.

Whether Ark evolves from a payment layer into a fully programmable financial platform (as Ark Labs is pursuing with Arkade Assets) remains to be seen. But the foundational shift is already underway. Bitcoin now has two production Layer 2 protocols, and they work together rather than against each other.

A Perspective Worth Sitting With

What Ark reveals is that Bitcoin's UTXO model was an underexplored design space. For years, the scaling debate circled channels, sidechains, and rollups imported from other ecosystems. Ark goes in the opposite direction. It takes Bitcoin's own ownership model and asks what happens if you virtualize it, share it, and batch it without ever handing control to a third party.

The VTXO is a deceptively simple idea. It's just a Bitcoin output – held off-chain, in a verifiable tree of pre-signed transactions, with a guaranteed path back to the base layer at any time. That architectural fidelity to Bitcoin's core design is what makes Ark credible in a space full of proposals that quietly introduce new trust assumptions.

– BytebyByte, Cryptothreads

Sources and Further Reading

• Ark Protocol – "Official Specification" https://ark-protocol.org/
• Bitcoin Optech – "Ark Protocol" https://bitcoinops.org/en/topics/ark/
• Ark Labs – "ARK Protocol Explainer" https://docs.arklabs.xyz/ark/
• Second – "Introduction to the Ark Protocol" https://second.tech/docs/learn/intro
• Second – "Demoing the First Ark Transactions on Bitcoin Mainnet" https://blog.second.tech/demoing-the-first-ark-transactions-on-bitcoin-mainnet/
• The Block – "Ark Labs Launches Arkade Public Beta" https://www.theblock.co/post/375271/ark-labs-arkade-public-beta-layer-2-bitcoin
• Bitcoin Magazine – "Second Launches Bark on Bitcoin Mainnet" https://bitcoinmagazine.com/news/second-launches-bark-on-bitcoin-mainnet
